Dust is separated from the dirty air flow through filter elements
| MODEL | Torba Uzunluğu Bag Length |
Torba Sayısı (Ad) No of Sleeves (pcs) |
Filtre Alanı (m²) Filter Area (m²) |
Hava İhtiyacı (m³/dk) Air to be Filtered (m³/min) |

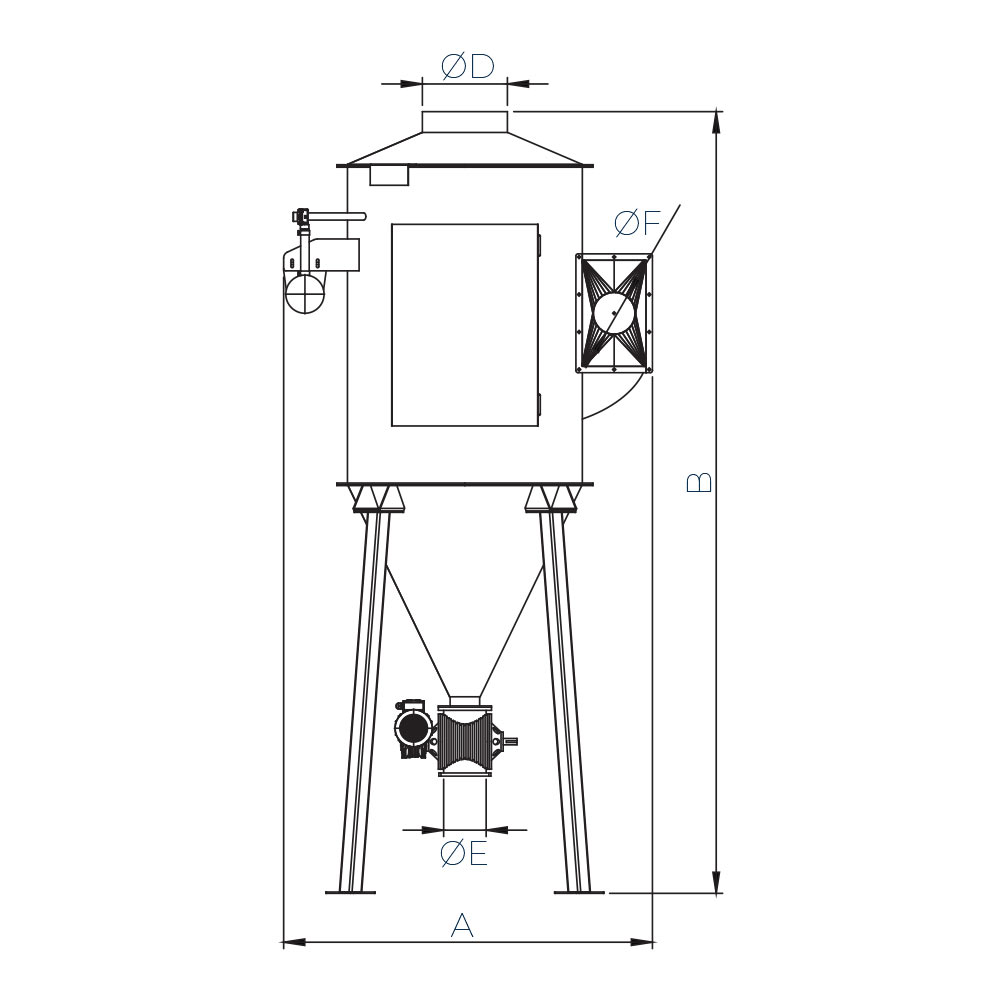

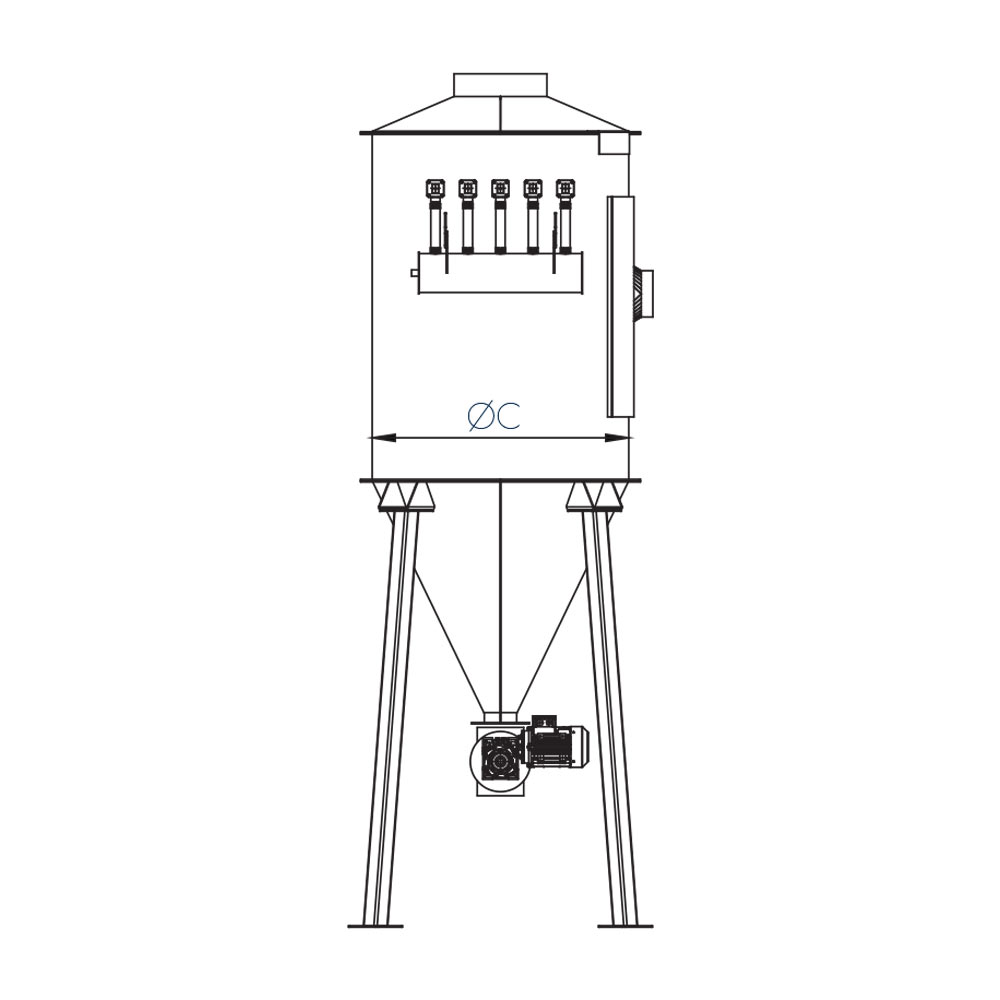

A | B | C | D | E | F | Ağırlık (kg) Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YMS PF-30 | 1200 | 30 | 11,7 | 130 | 1750 | 3700 | 1100 | 400 | 200 | 200 | 600 |
| YMS PF-38 | 2000 | 38 | 26,5 | 195 | 1960 | 4580 | 1330 | 400 | 200 | 300 | 1100 |
| YMS PF-52 | 2500 | 52 | 47 | 260 | 2200 | 4700 | 1500 | 600 | 200 | 400 | 1380 |
* Capacity values vary depending on the product to be ground.
